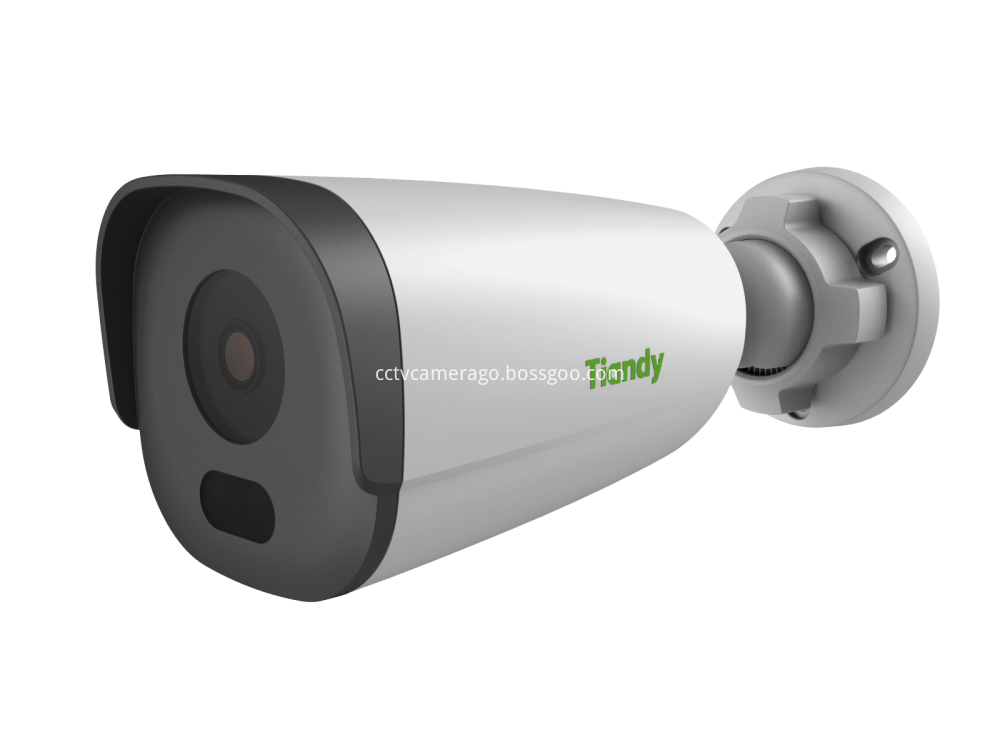

2MP H.265 IR Bullet Camera 4mm Tidandy TC-C32GN2.0

  • 2MP H.265 IR Bullet Camera 4mm Tidandy TC-C32GN2.0
  • 2MP H.265 IR Bullet Camera 4mm Tidandy TC-C32GN2.0
  • 2MP H.265 IR Bullet Camera 4mm Tidandy TC-C32GN2.0
  • 2MP H.265 IR Bullet Camera 4mm Tidandy TC-C32GN2.0

2MP H.265 IR Bullet Camera 4mm Tidandy TC-C32GN2.0

    Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 5 Set/Sets
    Delivery Time: 15 Days
    Packaging: netual packing ,color packing or customized packing
    Productivity: 50000 sets per week
    Brand: Tiandy
    Transportation: Ocean,Land,Air
    Place of Origin: Tianjin
    Supply Ability: 200000 per month
    Certificate: ISO9001 CE FCC SGS
    HS Code: 85299049
    Port: Shenzhen,Shanghai,Tianjin

Basic Info

Model No.: TC-C32GN

Product Description


· Up to 1920x1080 30fps

· S+265/H.265/H.264

· Min. illumination Color: 0.02Lux F2.0

· Smart IR, IR Range: 50m

· Operating Conditions -35°~65°, 0~95% RH

· POE, IP67

· Smart Codec/Image/Alarm

Products Details

Lite Bullet C32gn 2Lite Bullet C32gn 1


Lite Bullet C32GN

Camera TC-C32GN V2.0
Image Sensor 1/2.9" CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.02Lux@ (F2.0, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range Digital WDR
Angle Adjustment Bracket, pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens Type Fixed
Focus 4mm
Lens Mount M12
Aperture F2.0, Fixed
FOV Horizontal field of view: 82.1°
IR Range Up to 50 m
Wavelength 850nm
White LEDs N/A
Compression Standard
Video Compression S+265/H.265/H.264
Video Bit Rate 32 Kbps to 6 Mbps
Audio Compression N/A
Audio Bit Rate N/A
Max. Resolution 1920×1080
Main Stream PAL: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480)
NTSC: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480)
Sub Stream PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream N/A
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
OSD 16×16, 32×32, 48×48, adaptable size, Letters Such as Week, Date, Time, Total 1 Regions
Picture Overlay N/A
Privace Mask Yes
Smart Defog Yes
Alarm Trigger Motion Detection/IP Conflict/MAC Conflict/Mask Alarm
Video Analytics N/A
Early Warning(EW) N/A
Intelligent Coding Yes
Intelligent Image Yes
Intelligent Alarm Yes
Network Storage N/A
System Compatibility ONVIF (PROFILE S), SDK, P2P
Remote Connection ≤7
Client Easy7, EasyLive
Web Version Web5
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O N/A
Alarm I/O N/A
Reset Button N/A
On-board storage N/A
Firmware Version NVSS_V13.2.1.20190612_SP1
Web Client Language 11 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish
Operating Conditions -35℃~65℃, 0~95% RH
Power Supply DC 12V±20%, PoE (802.3af)
Power Consumption MAX: 6W(12V) MAX: 7W(POE)
Protection IP67
Heater N/A
Dimensions 208×82×81 mm (8.19×3.23×3.19 inch)
Weight 0.35Kg (0.77lb)
